Electric Actuator ECS Series

With the ETS series as the base, this low dust generation specifications model has a structure with no gaps.

[Features]
· Achieves low dust generation through the use of a gapless structure and suction port.
· Optimal for use in applications such as liquid crystal panel manufacturing lines and food processing lines.
· Choose the optimal lead for your speed and transport load needs. (2 mm, 5 mm, 10 mm, 16 mm, 20 mm, 25 mm, and 40 mm leads are available.)
· Oil is supplied directly to the guide and ball screw from the grease supply port.
· Simple maintenance and long life.
· Selectable base point sensor and limit sensor mount direction and sensor dog.
· The motors our customers are accustomed to using are mountable.
· Various types of brackets are available. Select from manufacturers and mounting directions.

Single Axis Actuators LX45 Standard / Cover Type

Single Axis Actuators LX20 Standard / Cover Type

Cable for Mitsubishi Electric/Encoder Cable

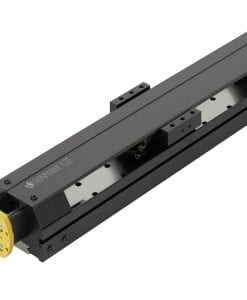

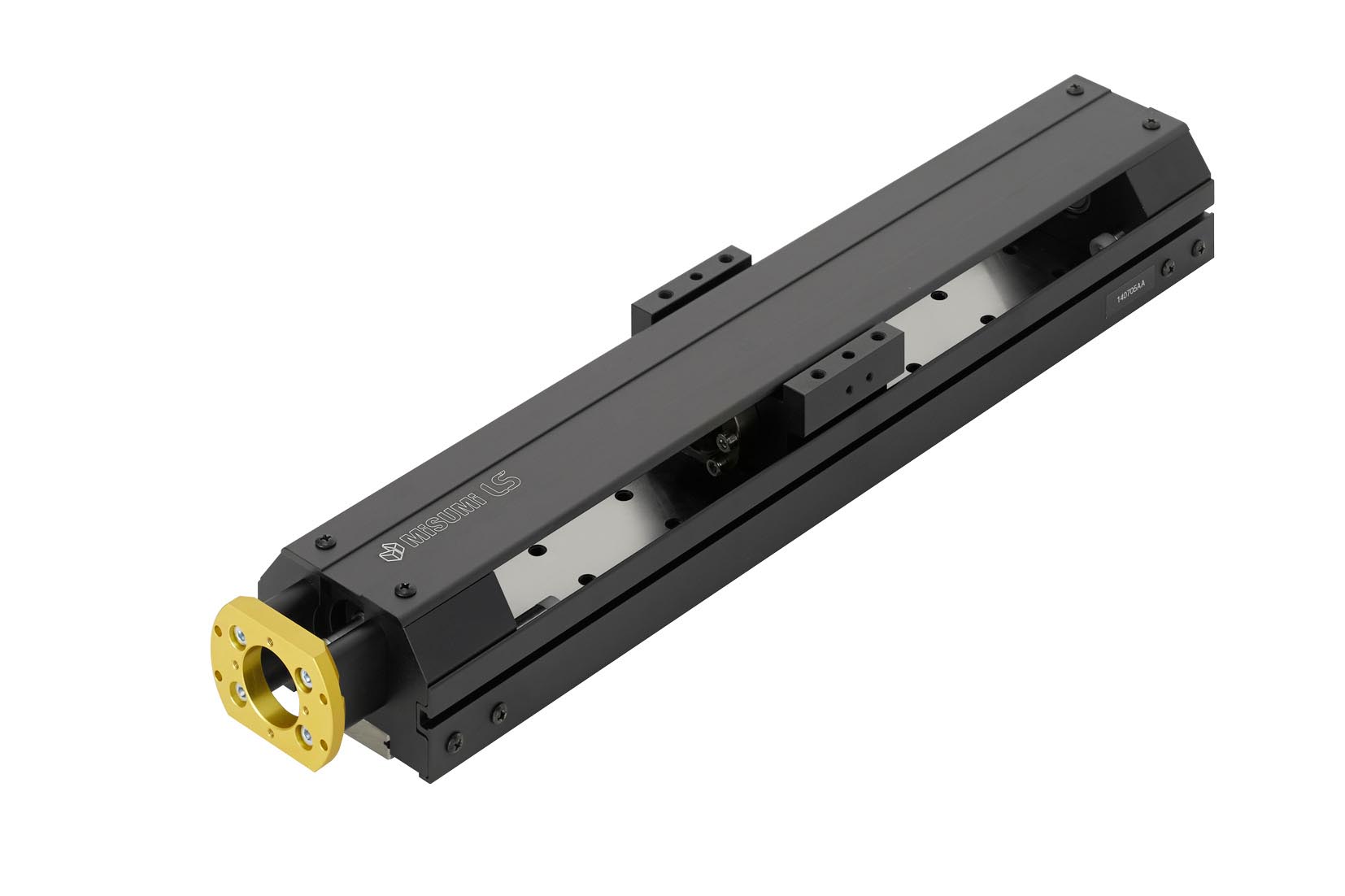

Single Axis Actuators LS12 [C-Value – Driven by Ball Screw]

Single Axis Actuators enabling medium accuracy level transferring/positioning operations economically.

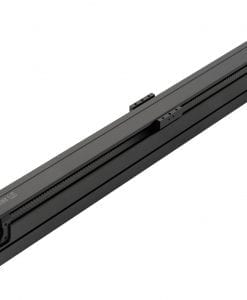

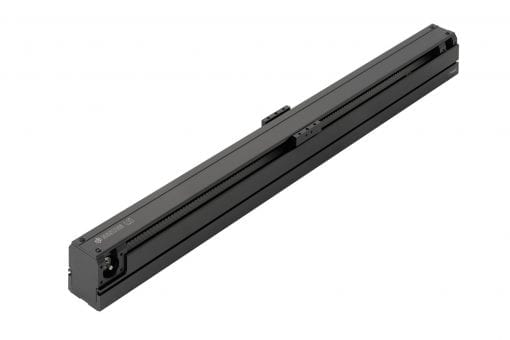

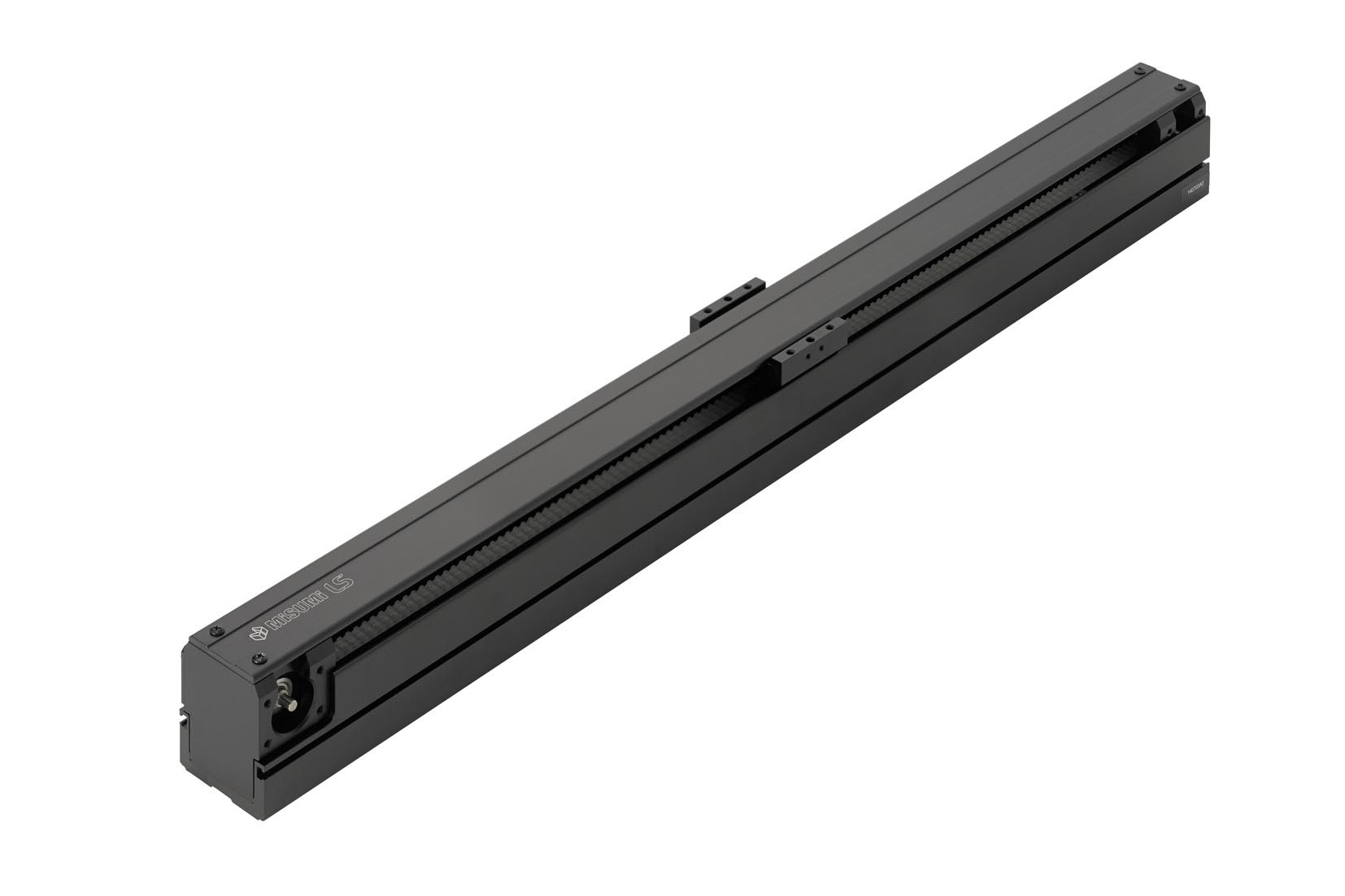

Single Axis Actuators LST10 [C-Value – Driven by Belt]

Single Axis Actuators LS10 [C-Value – Driven by Ball Screw]

[Medium Accuracy] Motor Bracket Mounting Fixtures for Single Axis Actuators LST10

Rack and pinion system LBE series

Rack speed is adjustable within a wide range.

[Features]
· This rack and pinion system controls speed using a brushless motor. Through the adoption of a brushless motor with excellent speed limiting properties, rack speed can be adjusted within a wide range. Can handle shipment of heavy loads in spite of its compact size.
· Rack with a long stroke maximum of 1000 mm and a range from: 100 to 1000 mm. Standard and part of the regular lineup.
· Rack speed can be adjusted within a wide range: Through the equipment of a brushless motor, the rack speed can now be adjusted within a large range. Because this type includes a magnetic brake, it can be used as a controllable up and down drive mechanism.
· Space saving installation: by fixing the screw holes on both tips of the rack in place, the motor drives itself, contributing to space saving.
· Pressing operation: Pressing operations are carried out by limiting motor torque. The pressing force can be set and adjusted with the optional data setting equipment OPX-2A unit.
· Can be mounted from two directions: The product is fitted with two mounting surfaces. Select the option that suits for your equipment.
· Free mounting: In order to accommodate various mounting directions and installation limitations, there are two types available: horizontal and vertical. Select the option that suits for your equipment.
· Linear motor available in two types.

Cable for Mitsubishi Electric/Motor Power/Brake Cable

Single Axis Actuators LX45 Motor Folded Type

Motor Adapter Centering Tools for LX30 Actuator

Actuator unit (link type)

The main body combines stable sliding with T-grooves on three faces for easy mounting, achieving the optimal cross-section shape with maximum strength. The slide mechanism uses materials with excellent abrasion resistance and self-lubrication, and is usable long-term for loads from top, bottom, left, and right.

Motor Adapter Centering Tools for LX26 Actuator

Compact Linear Actuator, DRL II Series, Single Actuator Unit

This product achieves linear motion using a unified stepping motor and ball screw. By cutting coupling and other mechanism parts this equipment is miniaturized with high accuracy positioning, contributing to improve equipment performance.

Compact Linear Actuator, DRL II Series

This product achieves linear motion using a unified stepping motor and ball screw. By cutting coupling and other mechanism parts this equipment is miniaturized with high accuracy positioning, contributing to improve equipment performance. In addition to the pulse stream input type, the FLEX type with built-in positioning support function, which provides a high level of freedom in system configuration as well as function.

Actuator unit

The main body combines stable sliding with T-grooves on three faces for easy mounting, achieving the optimal cross-section shape with maximum strength. The slide mechanism uses materials with excellent abrasion resistance and self-lubrication, and is usable long-term for loads from top, bottom, left, and right.

Motor Adapter Centering Tools for LX45 Actuator

Cable for Oriental Motor/5-phase Motors

Cable for Oriental Motor/5-phase Motors with Brake

Motor Adapter Centering Tools for LX20 Actuator

Actuator unit (open and close type)

The main body combines stable sliding with T-grooves on three faces for easy mounting, achieving the optimal cross-section shape with maximum strength. The slide mechanism uses materials with excellent abrasion resistance and self-lubrication, and is usable long-term for loads from top, bottom, left, and right.

Actuator unit (open and close link type)

The main body combines stable sliding with T-grooves on three faces for easy mounting, achieving the optimal cross-section shape with maximum strength. The slide mechanism uses materials with excellent abrasion resistance and self-lubrication, and is usable long-term for loads from top, bottom, left, and right.

Actuator unit (open and close type, specify stroke dimension)

Electric Actuator ETS Series

[Features]
· Flat type mounted at a low height with a parallel guide for high rigidity. (ETS-12 and above.)
· Choose the optimal lead for your speed and transport load needs. (2 mm, 5 mm, 10 mm, 16 mm, 20 mm, 25 mm, and 40 mm leads are available.)
· Oil is supplied directly to the guide and ball screw from the grease supply port.
· Simple maintenance and long life.
· Selectable base point sensor and limit sensor mount direction and sensor dog.
· The motors our customers are accustomed to using are mountable.
· Various types of brackets are available. Select from manufacturers and mounting directions.

Electric Actuator ETV Series

Belt drive type based on the ETS series.

[Features]
· A belt drive that achieves a long stroke and high speed performance.
· Two belt types are available to suit our customers’ usage environments (urethane foam and standard rubber).
· Selectable base point sensor and limit sensor mount direction and sensor dog.
· Oil is supplied directly to the guide from the grease supply port.
· Simple maintenance and long life.
· The motors our customers are accustomed to using are mountable.
· Various types of brackets are available. Select from manufacturers and mounting directions.

GMA Series

For the movement and microscopic angle adjustment of the lens and mirrors used with stoppers and other optical devices. Adjusted X, Y, and θ axes in the alignment stage. For camera and sensor position adjustment. For adjustment of microscopes, telescope lenses, and mirrors. For table positioning. For semiconductor and liquid crystal manufacturing equipment. For various automatic equipment, testing equipment, etc.

Positioning Supporter MAU5040-PS01

[Features]
· Can shift the mounting direction of spin locks and digital positioning indicators in increments of 90°.
