Shaft Supports – Giá đỡ trục

Shaft Supports – Giá đỡ trục

Shaft Supports Flanged Mount – Standard – Standard Through/Tapped Mounting Holes / Long Sleeve

Shape	Flanged Type	Shaft Securing Method	Set Screw	Type	Machined Product
Flange Shape/Type	Standard	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports Flanged Mount - Standard - Standard Through Tapped Mounting Holes Long Sleeve

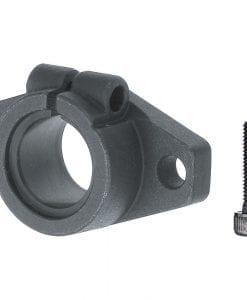

Shaft Supports – Flanged Slit (Cast Type) – Standard

Shape	Flanged Type	Shaft Securing Method	Slit	Type	Cast Product
Flange Shape/Type	Standard	Thickness	Standard	Dowel Hole	Provided
Clamp Lever	Not Provided

Shaft Supports - Flanged Slit (Cast Type) - Standard

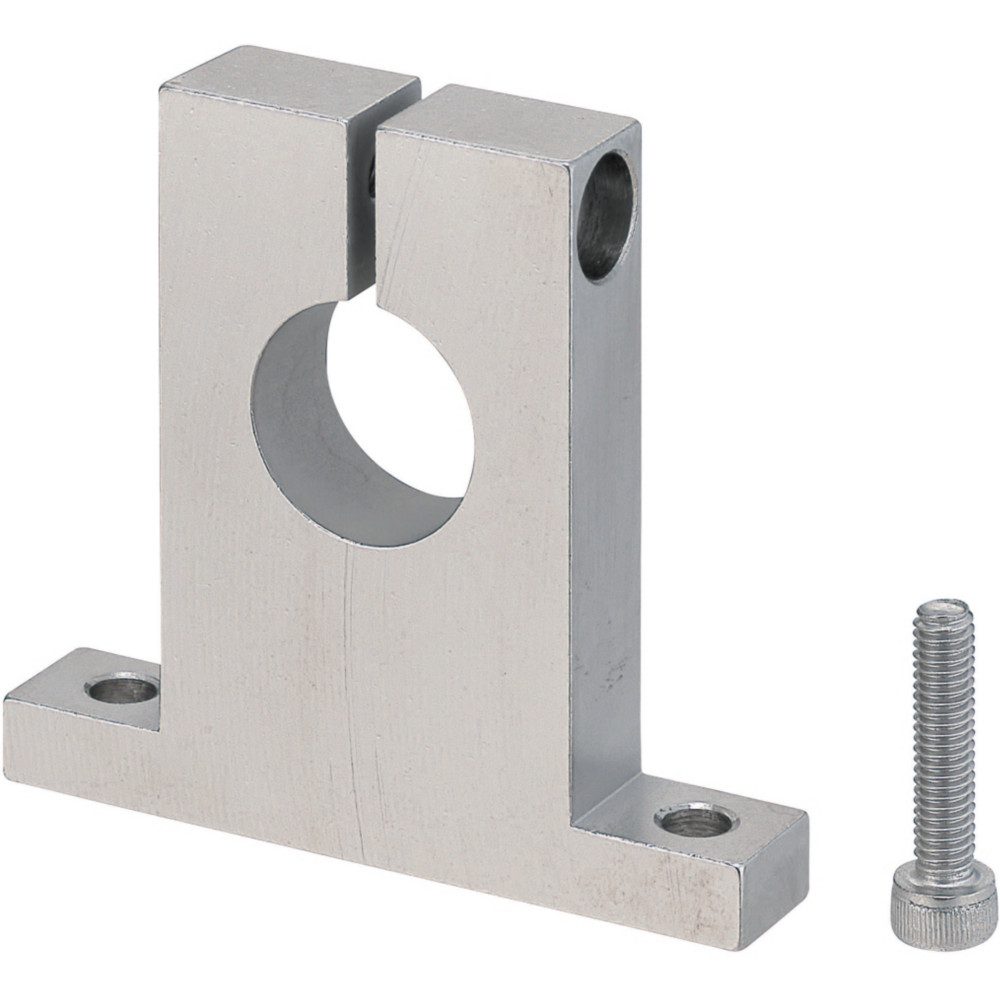

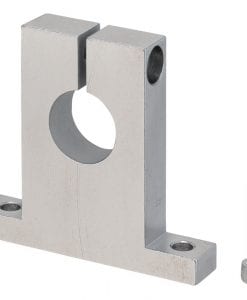

Shaft Supports T-Shaped Slit (Machined) – Standard / Wide

Shape	T-Shaped	Shaft Securing Method	Slit	Type	Machined Product
Thickness	Standard

Shaft Supports T-Shaped Slit (Machined) - Standard , Wide

Shaft Supports – Flanged Mount with Slit, Long Sleeves

Shape	Flanged Type	Shaft Securing Method	Slit	Type	Machined Product
Flange Shape/Type	Long Sleeve	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports - Flanged Mount with Slit, Long Sleeves

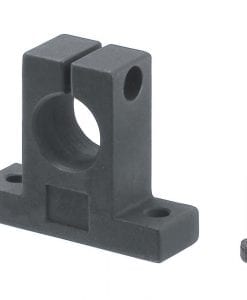

Shaft Supports – T-Shaped Slit (Cast Type) – Standard

Shape	T-Shaped	Shaft Securing Method	Slit	Type	Cast Product
Thickness	Standard	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports - T-Shaped Slit (Cast Type) - Standard

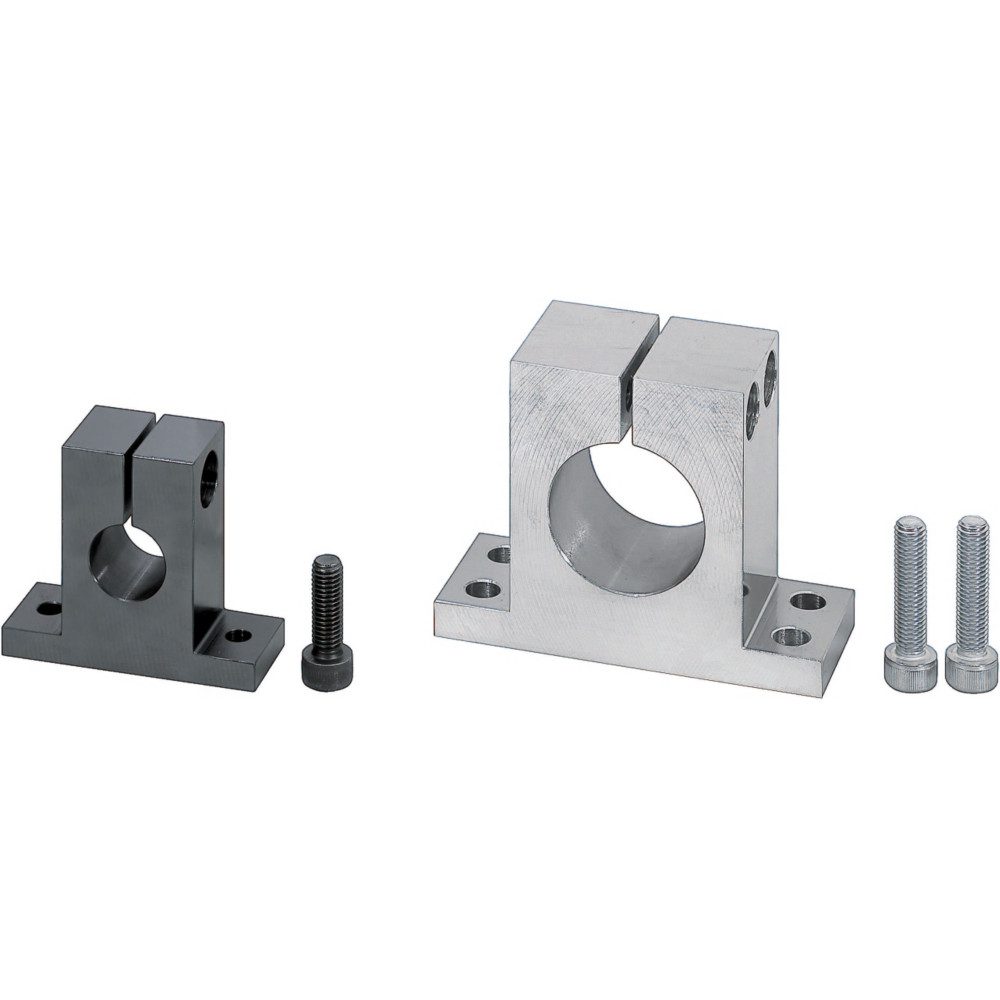

Shaft Supports T-Shaped Slit (Machined) – Wide

Shape	T-Shaped	Shaft Securing Method	Slit	Type	Machined Product
Thickness	Wide	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports T-Shaped Slit (Machined) - Wide

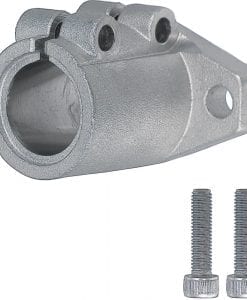

Shaft Supports – Flanged Slit (Cast Type) – Long Sleeve

Shape	Flanged Type	Shaft Securing Method	Slit	Type	Cast Product
Flange Shape/Type	Long Sleeve	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports - Flanged Slit (Cast Type) - Long Sleeve

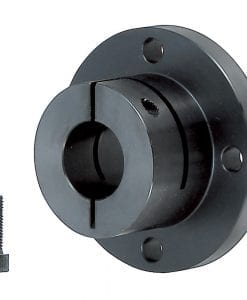

Shaft Supports Flanged Mount with Slit Type – Standard Type

Shape	Flanged Type	Shaft Securing Method	Slit	Type	Machined Product
Flange Shape/Type	Standard	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports Flanged Mount with Slit Type - Standard Type

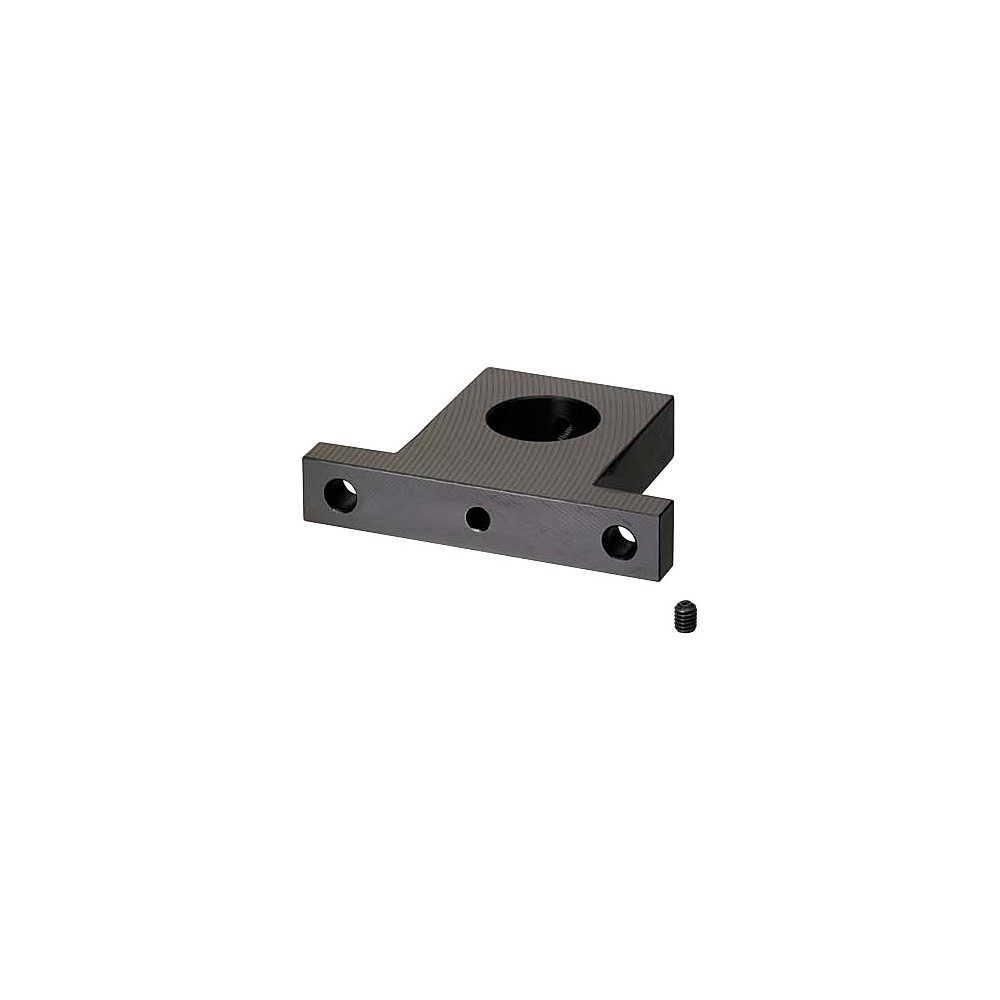

Shaft Supports T-Shaped Set Screw (Machined) – Standard , Wide

Shape	T-Shaped	Shaft Securing Method	Set Screw	Type	Machined Product
Thickness	Standard	Clamp Lever	Not Provided

Shaft Supports T-Shaped Set Screw (Machined) - Standard , Wide

Shaft Supports – Flanged Mount, Long Sleeves with Dowel Hole

Shape	Flanged Type	Shaft Securing Method	Set Screw	Type	Machined Product
Flange Shape/Type	Long Sleeve	Thickness	Wide	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports - Flanged Mount, Long Sleeves with Dowel Hole

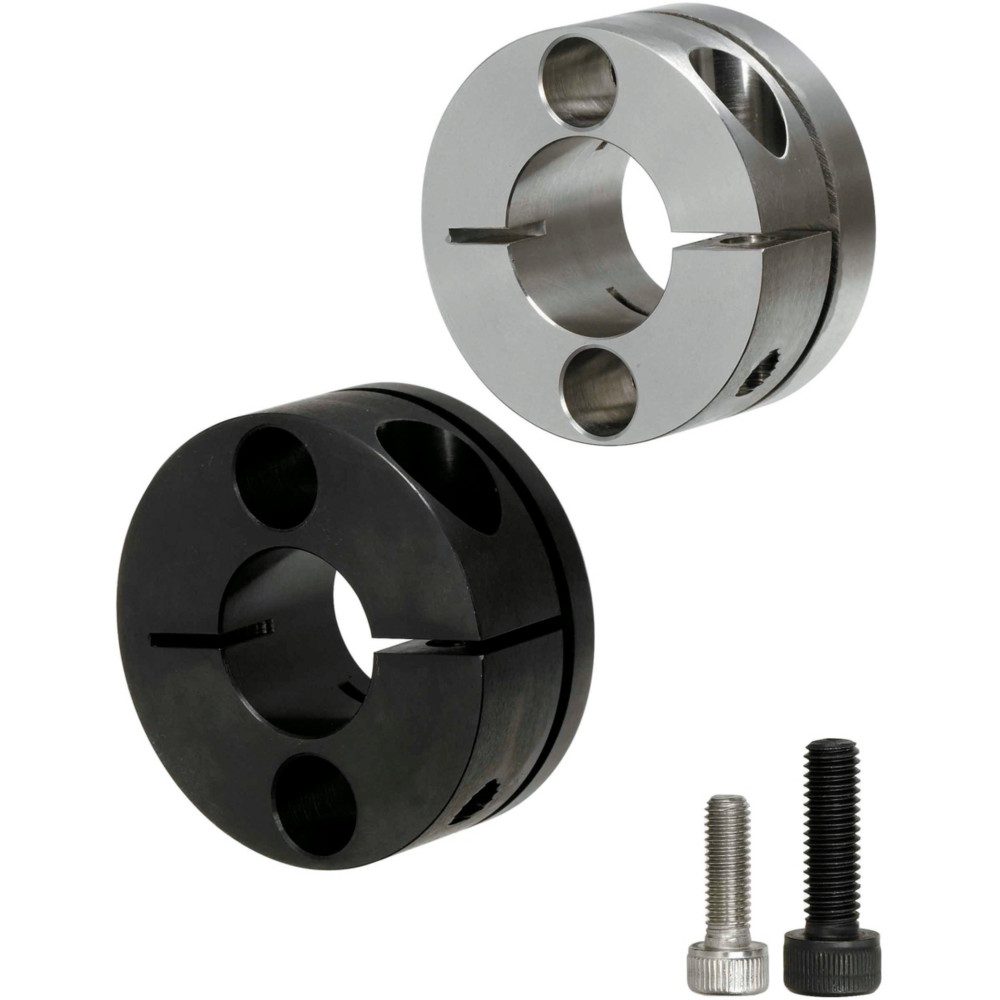

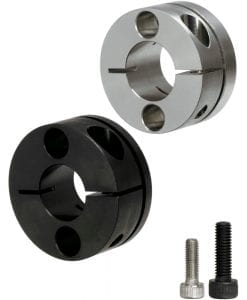

Shaft Supports Flanged Mount – Compact Standard / Compact Long Sleeve

Shape	Round Type	Shaft Securing Method	Slit	Type	Machined Product
Thickness	Standard	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports Flanged Mount - Compact Standard - Compact Long Sleeve

Shaft Supports L-Shaped (Machined) – Split

Shape	L-Shaped	Shaft Securing Method	Split	Type	Machined Product
Thickness	Standard	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports L-Shaped (Machined) - Split

Shaft Support SHF Series (Aluminum)

Shape	Flange Shape	Shaft Securing Type	Slit	Material	Aluminum
Surface Treatment	No	Type	Casting	Flange Shape/Type	Standard
Thickness	Standard	Dowel Hole	None	Clamp Lever	None

Shaft Support SHF Series (Aluminum)

Shaft Holder SK

Shape	T Shaped	Shaft Securing Type	Slit	Material	Aluminum
Surface Treatment	No	Type	Casting	Thickness	Standard
Dowel Hole	None	Clamp Lever	None

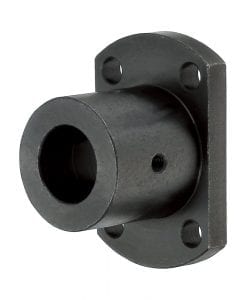

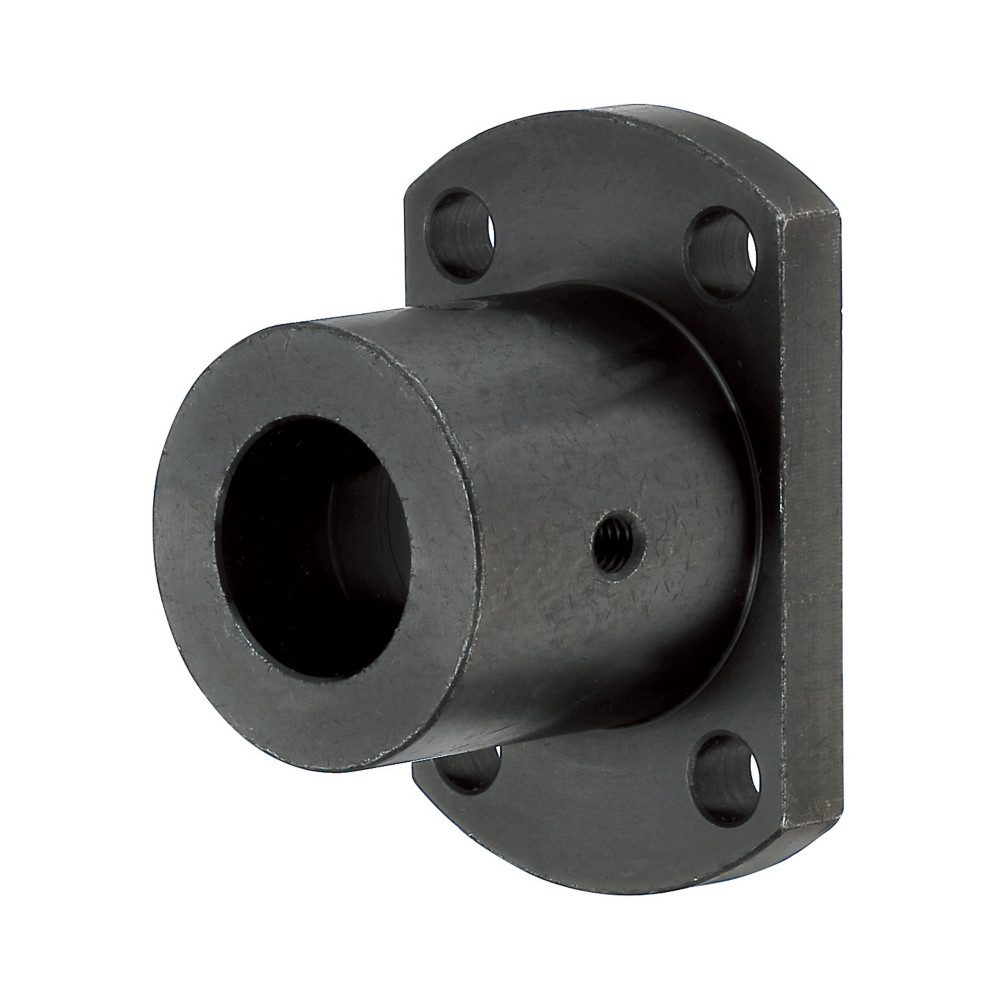

Shaft Supports Flanged Mount, Thick Sleeve – Standard / Long Sleeve

Shape	Flanged Type	Shaft Securing Method	Set Screw	Type	Machined Product
Flange Shape/Type	Standard	Thickness	Wide	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports Flanged Mount with Slit Type - Standard Type

Shaft Supports – T-Shaped Slit (Cast Type) – Wide

Shape	T-Shaped	Shaft Securing Method	Slit	Type	Cast Product
Thickness	Wide	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports - Flanged Slit (Cast Type) - Long Sleeve

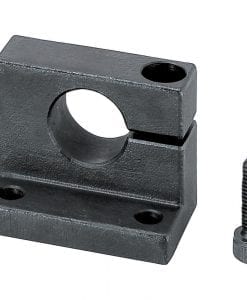

Shaft Supports – L-Shaped (Cast Type) – Side Slit

Shape	L-Shaped	Shaft Securing Method	Side Slit	Type	Cast Product
Thickness	Standard	Dowel Hole	Not Provided	Clamp Lever	Not Provided

Shaft Supports - L-Shaped (Cast Type) - Side Slit

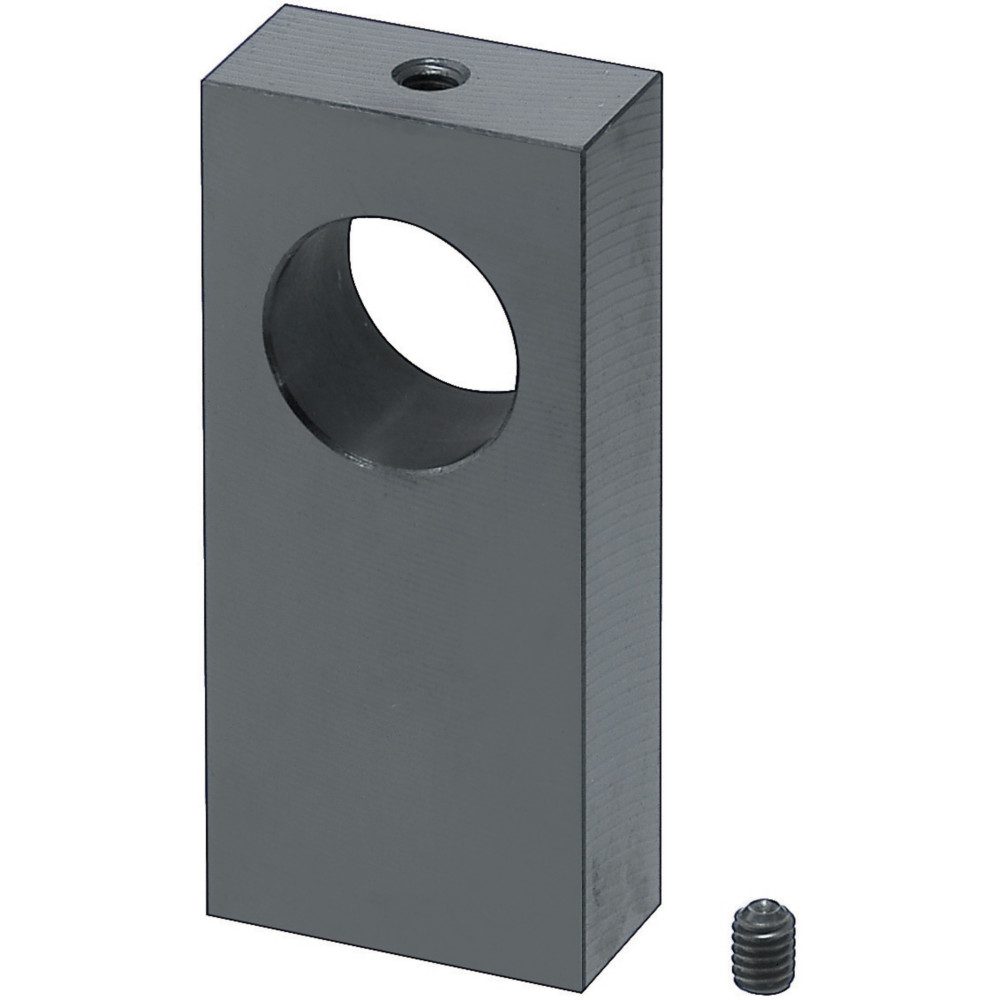

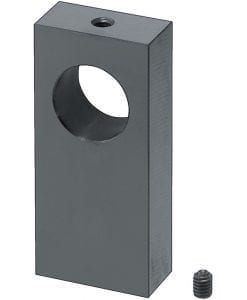

Shaft Supports Bottom Mount Set Screw (Machined) – Standard

Shape	Block Type	Shaft Securing Method	Set Screw	Type	Machined Product
Mounting Method for Block Type	Bottom Tapped Hole	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports Bottom Mount Set Screw (Machined) - Standard

Shaft Supports Flanged Mount – Back Mount

Shape	Flanged Type	Shaft Securing Method	Set Screw	Type	Machined Product
Flange Shape/Type	Back Mount	Thickness	Standard	Dowel Hole	Not Provided
Clamp Lever	Not Provided

Shaft Supports Flanged Mount - Compact Standard - Compact Long Sleeve

Shaft holder precision cast product – Flange type – [SKBHF]

Shape	Flange Shape	Shaft Securing Type	Slit	Material	Aluminum
Surface Treatment	Clear Anodize	Types	Casting	Flange Shape/Type	Long Sleeve
Mounting Method for Block Type	Side Through Hole	Thickness	Standard	Dowel Hole	None
Clamp Lever	None	T shaped Kind	Standard Type	Mounting Hole Shape	Through Hole Type

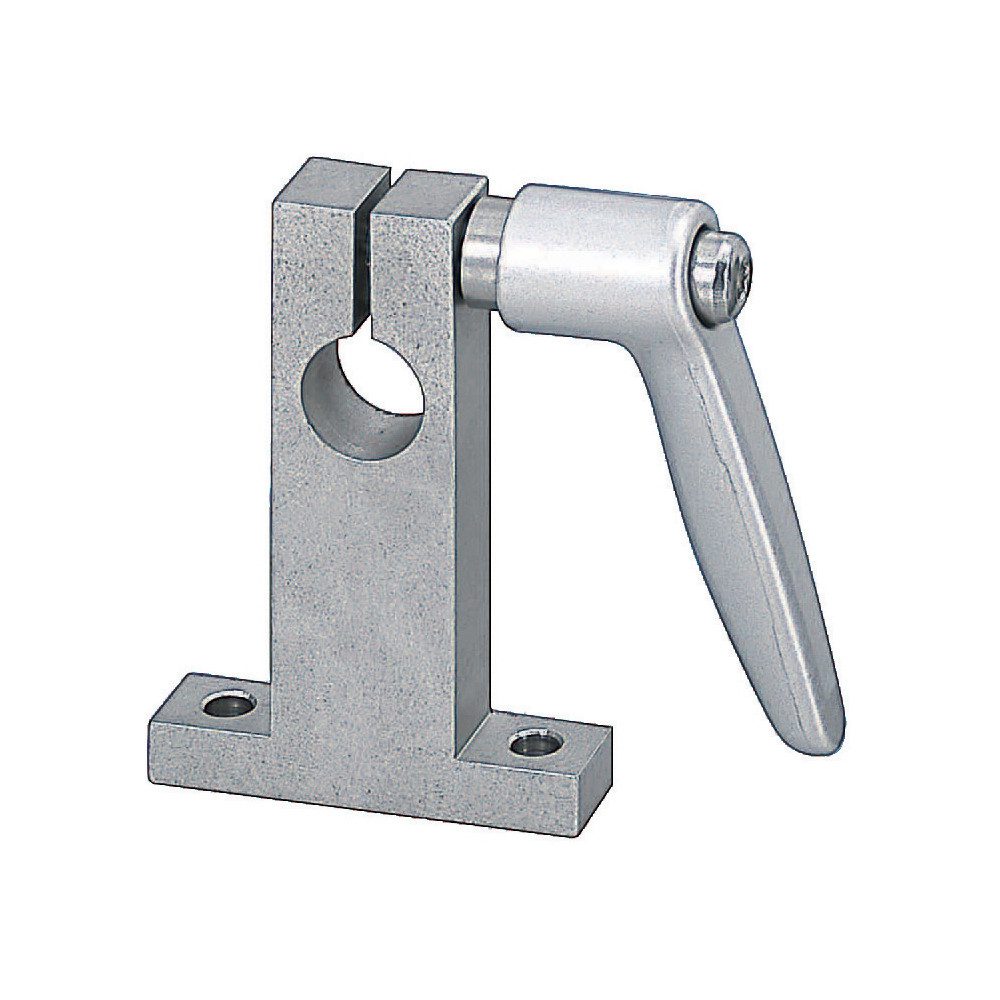

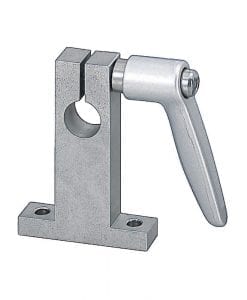

Shaft Supports/T-Shaped with Clamp Lever

Shape	T-Shaped	Shaft Securing Method	Slit	Type	Machined Product
Thickness	Standard	Dowel Hole	Not Provided	Clamp Lever	Provided

Shaft Supports-T-Shaped with Clamp Lever
