Motorized Stages – Các cụm chuyển động tự động

Motorized Stages – Các cụm chuyển động tự động

Motorized Stages - Các cụm chuyển động

Motorized Stage Peripheral Devices

Other Control Devices

This driver is recommended for driving motorized stages using a motion control board or a PLC positioning unit (not using a controller made by Suruga Seiki).

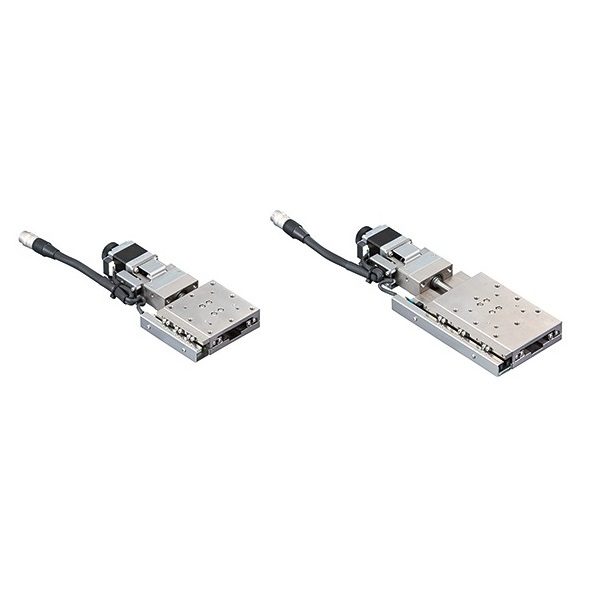

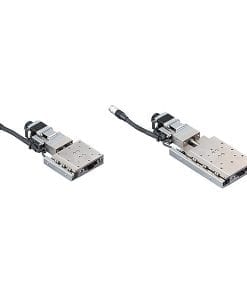

X-Axis

Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V.

Z-Axis

Features specially designed housing which gives high rigidity and a compact size. Exhibits high motion accuracy and drive performance thanks to its integrated structure featuring the main body base and guide mechanism. An ultra low price stage.

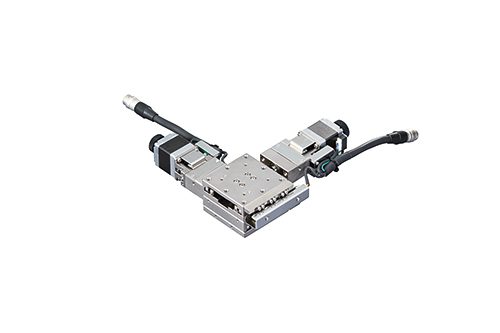

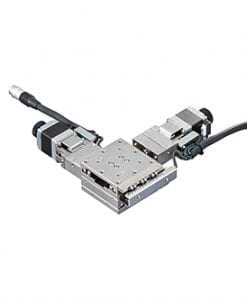

XY-Axis

Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V.

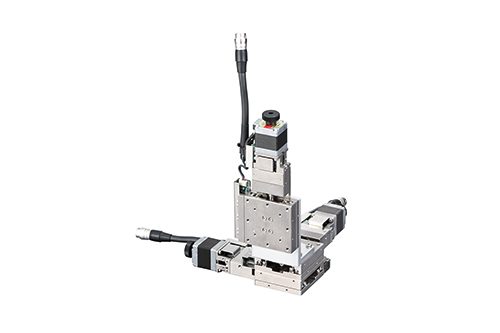

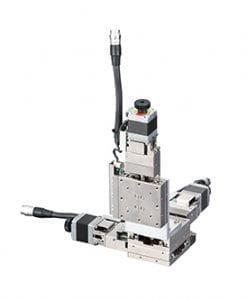

XYZ-Axis

Please confirm the suitable power supply for each motor option.
5-Phase Stepping Motor with Brake (MA) works with single-phase AC100-120V.
α-Step Motor (PA) works with DC24V.
AC Servo Motor (U) works with single-phase or three-phase AC200-230V.

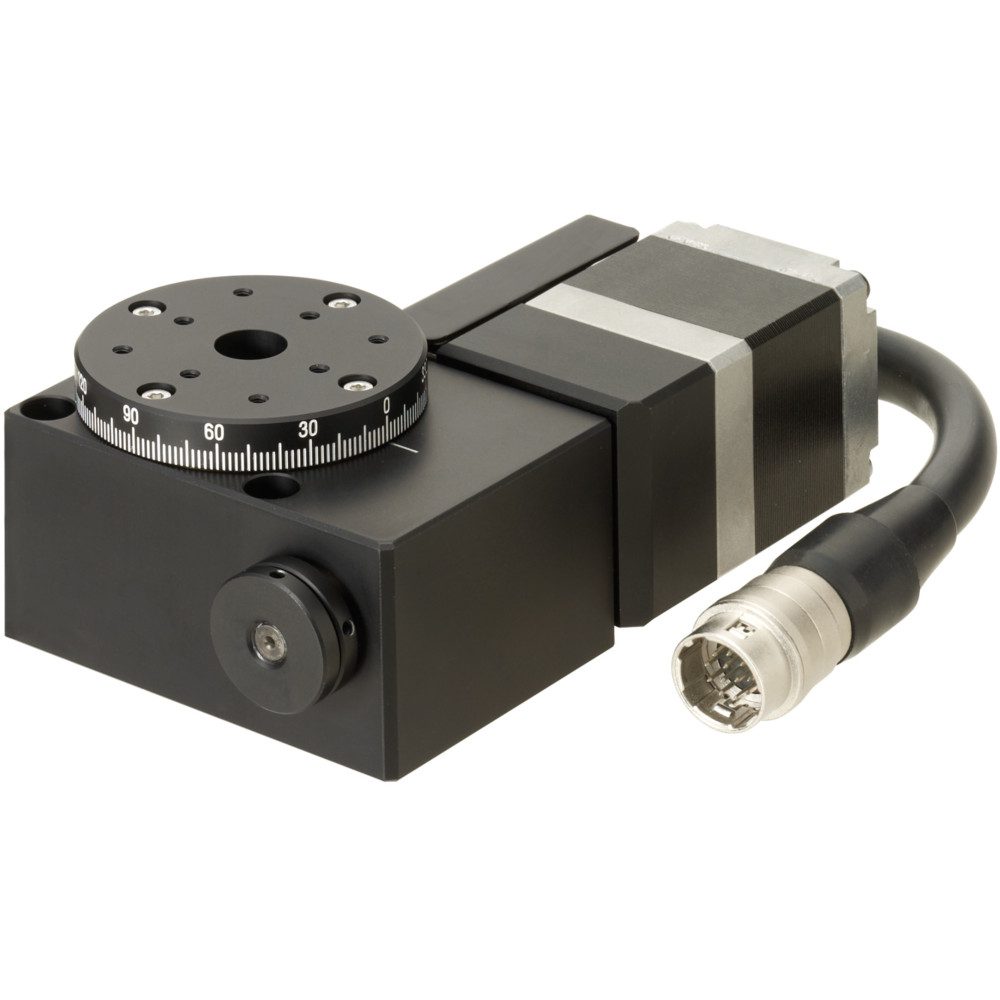

Rotary

After November 1, 2018, there will be some slight specification changes of photo Sensor as below.
[Current Type]EE-SX4134→[New Type]EE-SX4320

Goniometer

Circular arc driven stages with arc centers in the center of perpendicular lines on the stage surface. Employs a cross rollers for the travel guide and worm gears for the mechanism. High precision gonio stages available in a wide variety of sizes.
