Lubrication, Free Material (Round Bars, Pipes) – Dầu mỡ, vật liệu tự do (thanh tròn, ống)

Lubrication, Free Material (Round Bars, Pipes) – Dầu mỡ, vật liệu tự do (thanh tròn, ống)

Oiles Aramid M Ball

The Oiles Aramid M series are formed heat-resistant engineering plastic products made of aromatic polyamide (meta-aramid).

Material round bar Cermet G (55M)

Provides high friction resistance when oil film formation is discouraged due to high temperatures.

Oiles Aramid M Plate Material

The Oiles Aramid M series are formed heat-resistant engineering plastic products made of aromatic polyamide (meta-aramid).

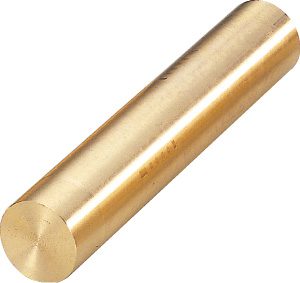

Materials, Round Bar #600 (36M)

The diameter/length are roughly drawn dimensions. For use as lubrication.

Oiles Aramid M Bushing Material

The Oiles Aramid M series are formed heat-resistant engineering plastic products made of aromatic polyamide (meta-aramid).

Materials, Bushing #600 (36S)

The inner and outer diameter / length are roughly drawn dimensions. For use as lubrication.

Thermalloy D Type, Standard Material

Metal-based oil free bearing (finished bushings) in which a solid lubricant is finely and uniformly dispersed into a metal base metal (standard material).

[Features]
· Bronze alloys are offered as a standard material for Thermalloy type D and also standard parts such as finished bushings. (Lead-bronze products are only made to order.
· Not compliant with RoHS/ELV)

Materials pipe #80 (80S)

Can be used oil free and provides superior resistance to load and abrasion.

Materials, Bushing #300 (30S)

Excellent oil film retention and superior abrasion/seize resistance can greatly reduce the number of times lubrication is necessary.

Material Bushing Cermet G (55S)

Provides high friction resistance when oil film formation is discouraged due to high temperatures.

[Features]
· Choose your part number according to the appropriate inner diameter, outer diameter, and length.
· After machining, treatment with oil is also possible

Materials Bushing Cermet M (54S)

Provides high friction resistance when oil film formation is discouraged due to reciprocating motion, intermittent operation, and swing motion.

Materials, Round Bar #300 (30M)

Excellent oil film retention and superior abrasion/seize resistance can greatly reduce the number of times lubrication is necessary.

[Features]
· Choose your part number according to the appropriate diameter.
· The diameter/length are roughly drawn dimensions.
· Ensure that oil is added after machining and before use

Materials, Round Bar #80 (80M)

Can be used oil free and provides superior resistance to load and abrasion.

[Features]
· Choose your part number according to the appropriate diameter

Material Round Bar Glitron F (77M)

Low static friction coefficient and no stick slips. Can also be used in a wide range of temperatures, from low to high.

[Features]
· Choose your part number according to the appropriate diameter

Material Round Bar Cirmet M (54M)

Provides high friction resistance when oil film formation is discouraged due to reciprocating motion, intermittent operation, and swing motion.

[Features]
· Choose your part number according to the appropriate diameter and length.
· Ensure that oil is added after machining and before use

Material Round Bar Luteick E (LEM)

Can be used without oil, and provides conductivity.

[Features]
· Choose your part number according to the appropriate diameter

Materials, Round Bar #480 (48M)

Carbon fiber-reinforced oil impregnated polyacetal round bar. Can be used without oil, and exhibits superior wear resistance in an abrasive environment.
Superior speed characteristics.

Oiles Aramid F1 Disc

This product inherits the heat resistance and high hardness from the Oiles Aramid M series
and features improved wear resistance and low friction characteristics necessary for bearings.

Oiles Aramid F1 Round Bar

This product inherits the heat resistance and high hardness from the Oiles Aramid M series and features improved wear resistance and low friction characteristics necessary for bearings.

Oiles Aramid M Disc

The Oiles Aramid M series are formed heat-resistant engineering plastic products made of aromatic polyamide (meta-aramid)

Material Round bar #250-07 (#425-07) (25M)

Cylindrical rod material #250-07 can be used as #425-07 (for in-water use) when adding wax after machining.

Material Plate #250-07 (#425-07) (25P)

Plate material #250-07 can be used as #425-07 (for in-water use) when adding wax after machining

Thermalloy T Type Bearing

[Features/Caution]
· Type T Thermalloy is sold as a material. Since it can not be used as sold, ensure that the inside diameter, outside diameter, and end surfaces are cut before use.
· This product is a sintered material. Not able to withstand impact loads and should not be used in such cases. Please also note that it is not durable against bending load and tensile load.
· Claws may become embedded when chucking during machining, so the minimum force required should be used when chucking for fixing.
· Take sufficient care to manage the cutting edge and feed speed during machining. Be aware that excessive machining will cause fissures and cracks.
· If you would like machining to be completed at our company, we can do so if directions are provided in the drawings. Please inquire if you are considering this.
