Feed Fingers

Automatic Latches

Natural Supporter (Cylinder Type)

Air natural supporter

Button lock clamp

[Features]
· No flutter wedge lock
· The ball by means of wedges pulls the plate into the push out case at the taper surface

Horizontal Natural Supporter

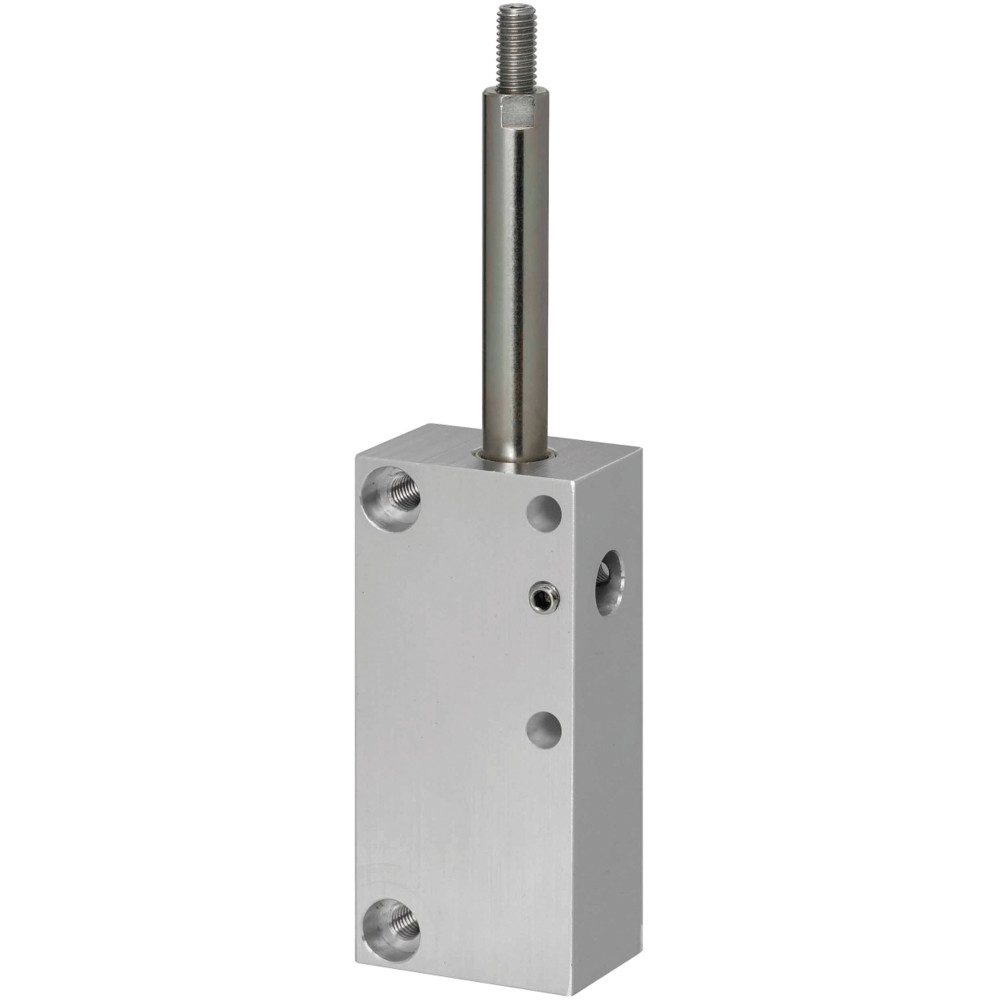

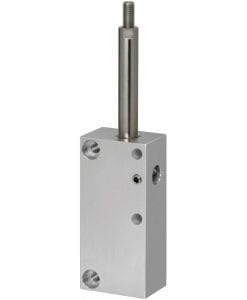

Workpiece Detection System

Use of sheet metal for the main body has realized price reduction by approx. 50%, compared to the conventional products

Linear Stop Motion

Using lever operation linear rail is directly clamped. As clamp is with internal screw, clamping is always regular. Can operate even in narrow gap.

[Features]
· Easy operation and secure locking.
· As clamps with internal spring, clamping is always regular.
· As swivel space for clamping lever is not required, can operate even in small gap as shown in the diagram below.
· Lever direction can be changed by 90° pitch

Rubber Stopper EH

Square steel slide lock

[Features]
· When knob is in OFF position, there is a gap between steel material and shaft allowing left / right slide.
· When knob is in ON position, shaft is inserted in gap between steel material and wedge, and left/right slide of steel material is locked.

Remote Control Unit

Index Mechanism

[Features]
· Index mechanism with lever.
· Excellent operability.
· LXY‐B-single lever.
· LXY‐C-doubnle lever.
· 6° and the adjustment multiple angle, that is 2, 3, 5, 6, 10, 12, 15, 20, 30 can be positioned.
· Mechanism with superior durability with positioning etc. by pin providing accuracy unobtainable with other methods.
· Scales and symbol marks can be engraved.

Cam Lever

[Product information]
· Lever type lever, or leverless
· Material: Stainless steel

Serrations lock

[Features]
· Rotational direction positioning part.
· With 2 serration locks in combination 6° and the adjustment multiple angle, that is 2, 3, 5, 6, 10, 12, 15, 20, 30 can be positioned.
· At the center of the serration lock, the reamer hole and female thread have been machined.
· In serration lock sets there are 2 types of system
· Choose from 2 types of installation methods for machinery / equipment.
· Used in conjunction with serration lock use guide LXP, rotation operation in loosened serration lock state is easy.
· Used in conjunction with serration lock use spring LXP when the serration lock is loosened, serration engagement releases.

Serration Lock Spring

[Features]
· Use in conjunction with serration lock LXP.
· When serration lock is loosened, serration engagement is automatically released.
· Materials / finish: SUS

Guide for serration lock

[Features]
· Serration lock LXP dedicated guide.
· Rotation of serration lock in loosened state is easy.
· Materials· finish SUM22L black oxide coating

Quick Shaft Clamp

Lever operation pushes the internal push bar, and shaft is clamped. Unclamp operates when returning lever with plate spring acting on push bar.

Quick shaft clamp (air operations)

Clamp with spring pressure, and unclamping with air pressure, so no worry of lowered clamping force due to air leaks etc. Multiple simultaneous controls possible.

Air compact natural supporter

Long hole slide lock

[Features]
· When knob is in OFF position, there is a gap between steel material and shaft allowing left / right slide.
· When knob is in ON position, shaft is inserted in gap between steel material and wedge, and left/right slide of steel material is locked.

Thumb turn clamper
