Loctite Eccobond 104 AB TDS:
Loctite Eccobond 104 AB SDS:

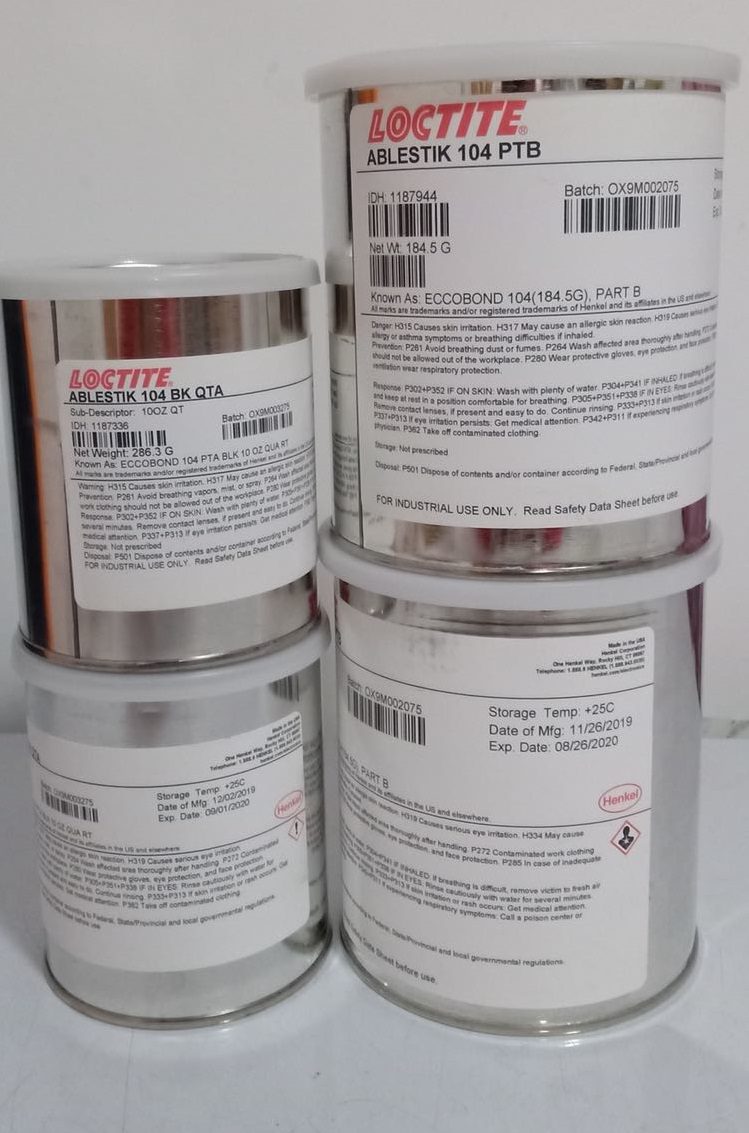

Loctite Eccobond 104 Part A Black:
Henkel Loctite Ablestik 104 Black, formerly Emerson and Cuming ECCOBOND, is a two component, heat curing, liquid epoxy adhesive that is used for the assembly of thermoset plastics, metal, ceramics, and glass. It offers a long pot life, high shear strength, non-conductive properties, excellent high temperature and chemical resistance. Part A, 10 oz Can.
| Typical Use: | Used for bonding metals, glass, ceramic and thermoset plastics in applications requiring very high temperature exposures. |
| Brand: | Ablestik |
| Chemical Composition: | Epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 6h @ 120 °C; 3h @ 150 °C; 2h @ 175 °C; 1h @ 200 °C |
| Dielectric Strength: | 15.7 kV/mm |
| Flash Point: | >93 °C |
| Hardness: | 90 D |
| Mix Ratio: | 100:64 by weight |
| Service Temperature: | -25 to 230 °C |
| Shear Strength: | 1,800 @ 25 °C |
| Specific Gravity: | 1.4 |
| Viscosity: | 25,000 @ 25 °C |
| Volume Resistivity: | 1 x 10^15 ohm-cm @ 25 °C |
| Working Time: | >12h @ 25 °C |
Loctite Eccobond 104 Part B White:
Henkel Loctite Ablestik 104 White, formerly Emerson and Cuming ECCOBOND, is a two component, heat curing, powder epoxy adhesive that is used for the assembly of thermoset plastics, metal, ceramics, and glass. It offers a long pot life, high shear strength, non-conductive properties, excellent high temperature and chemical resistance. Part B, 6.5 oz Can.
| Typical Use: | Used for bonding metals, glass, ceramic and thermoset plastics in applications requiring very high temperature exposures. |
| Brand: | Ablestik |
| Chemical Composition: | Anhydride |
| Color: | White |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 1h @ 200 °C; 2h @ 175 °C; 3h @ 150 °C; 6h @ 120 °C |
| Dielectric Strength: | 15.7 kV/mm |
| Hardness: | 90 D |
| Mix Ratio: | 100:64 by weight |
| Service Temperature: | -25 to 230 °C |
| Shear Strength: | 1,400 to 1,800 |
| Specific Gravity: | 1.6 |
| Volume Resistivity: | 1 x 10^15 ohm-cm @ 25 °C |
| Working Time: | >12h |
