Santerno-Sinus-Inverter-Technical-Manual

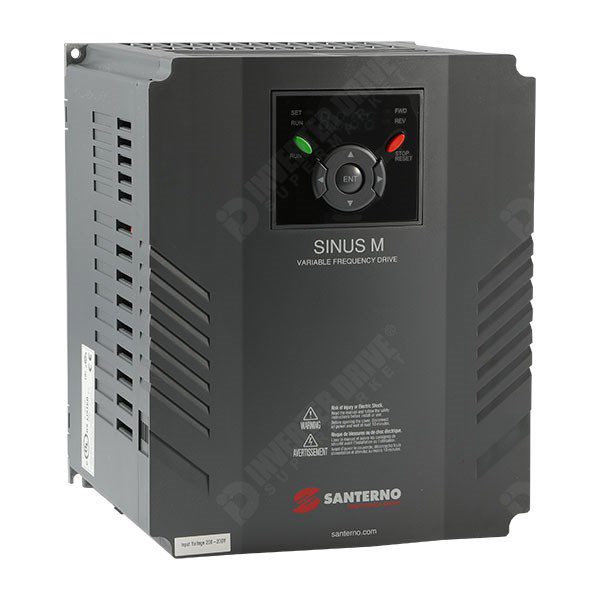

Santerno 230V AC Inverter Drive
Santerno – AC Frequency Inverter for a 3.7kW, 4.0kW or 4.5kW (5HP, 5.5HP or 6HP) 230V 3 Ph motor in Simple VxF or Sensorless Flux Vector control to 17A. Converts single phase 230V input (or three phase 230V) to variable frequency three phase 230V for a standard AC Induction motor.
Simple set-up from ‘Quick-Start’ menu for control up to twice the motors nominal speed.
140mm Wide x 155mm Deep x 128mm High – IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/400Hz.
Braking – 20% duty into minimum 56 Ohm external resistor.
EMC – compliant to EN 61800-3 2nd edition 2nd environment C3 Category (Industrial).
2 x Analogue Inputs (one is Current input), 8 Digital Inputs, 1 Analogue output, 2 Digital outputs (one relay).
Input Current: – 22.5A via 32A circuit breaker or 40A Fuse.
Input Voltage – 200V to 230V Single or Three Phase +10%, -15% at 50/60Hz (±5%) (reduced kW rating at 200V).
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 50mm.
Mounting with screw fixing (3 x M4).

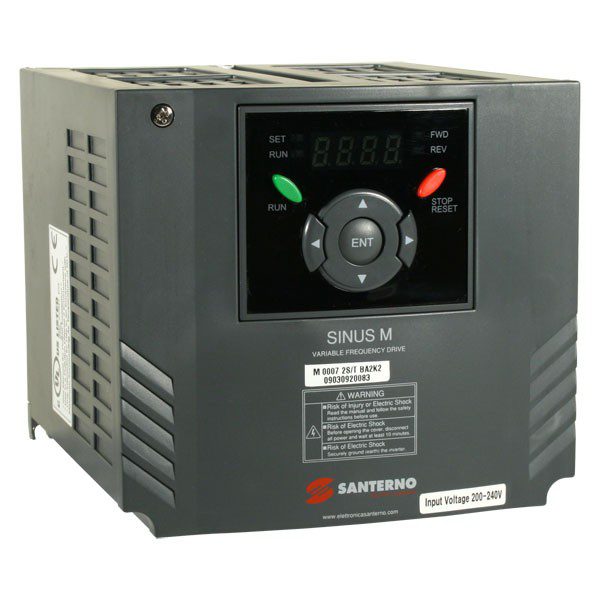

Full part number is – Sinus M 0007 2S/T BA2K2 (M00072S/TBA2K2).
