Danfoss-VLT-Micro-Drive-FC51-Quick-Guide
Danfoss 230V AC Inverter Drive

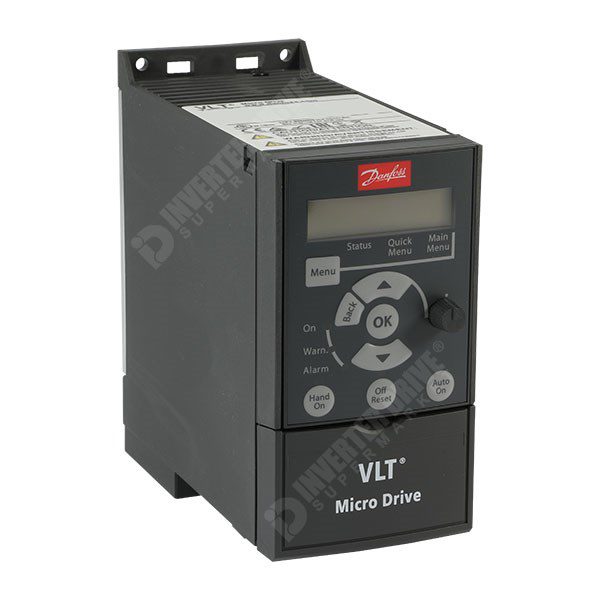

Danfoss VLT Micro Drive FC 51 Series AC Frequency Inverter:
Danfoss VLT Micro Drive FC 51 Series AC Frequency Inverter for 0.18kW (0.25HP) 230V 3 Phase Motor in VxF and Sensorless Vector Control (VVC) to 1.2A.
Supplied with Local Control Panel (Keypad) 132B0101 – with potentiometer
Output Current Rating: 1.2A
Overload: 150% x 60 seconds.
Size: M1 – 70mm Wide x 155.6mm Deep x 150mm High. IP20.
Weight: 1.1kg.
Speed Control Range: 0-200 Hz (VVC+), 0-400 Hz (VxF).
Braking (DBr): Not fitted
Keypad (HMI) is supplied as an additional item to be fixed to the front of the FC 51 unit.
2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Relay Contact set.
Communications: RS485 (twin-wire); FC Protocol, Modbus RTU.
Programmable from a PC via Danfoss MCT 10 Software. (via RS485 port)
Input Current: 4.5A max
Input Voltage: 200-240V ±10% at 50-60Hz.
EMC Filters: To IEC/EN 61800-3 2nd Environment (Industrial); 1st Environment with restrictions – C2
Cubicle mount.
Ambient: Rated at 40°C
Ventilation space above and below: 100mm.
Ventilation space at sides: 0mm (drives can be mounted side by side)
Heat Loss at max output: 15.5W.
Mounting: Via 4 x 5mm diameter holes at rear on 59mm x 166.4mm centres
Full part number (without Keypad): 132F0001
Local Control Panel (Keypad) part number: 132B0101
Note: Supplied as 2 individual items, FC 51 drive unit and separate keypad for mounting of the front of the FC 51.
Type Code: FC-051PK18S2E20H3

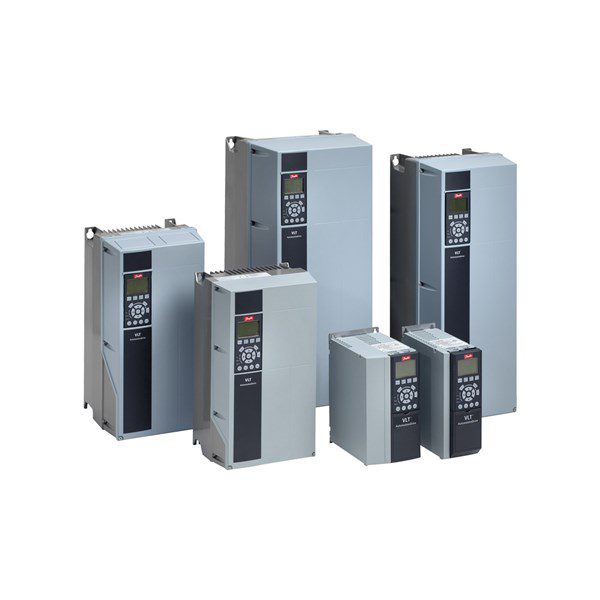

Danfoss VLT AC Frequency Inverter:
Danfoss VLT AC Frequency Inverter for 0.75kW (1HP) 200-240V 3 Phase motor in VxF control to 4.6A.
Input Voltage – 200-240V Three Phase ±10% at 50-60Hz ±5%.
Input Current: 4.1A
EMC Filters: IEC EN61800-3 Class A1/B Category C1 (Industrial and Domestic).
Brake Chopper.
Coated PCB
Frame Size: A2
Dimensions: 268mm High x 90mm Wide x 205mm Deep
Weight: 4.8Kg
Wall mount IP20 in clean environment, or cubicle mount, via 4 holes at the rear on 257mm x 70mm centres.
Estimated Power Loss: 54Watts
Rated at 45°C Ambient.
Full part number is 131B1106
Type Code: FC-301PK75T2E20H1BGCXXXSXXXXAXBXCXXXXDX
