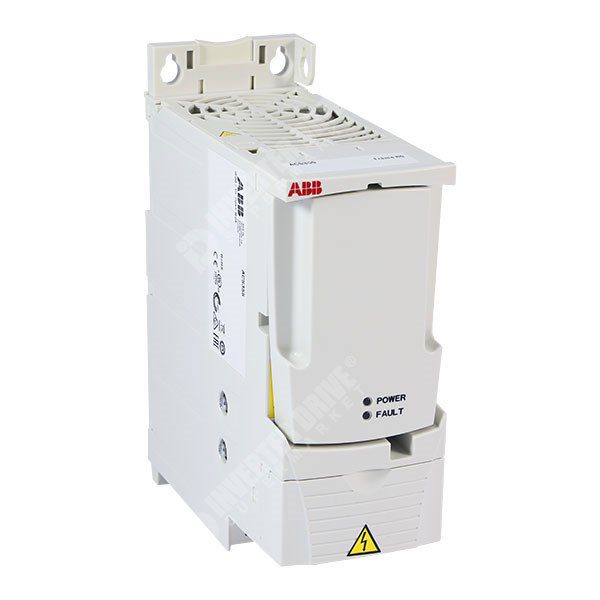

ABB ACS355 – 230V AC Inverter Drive
ABB ACS355 AC Frequency Inverter for 0.37kW (0.5HP):
ABB ACS355 AC Frequency Inverter for 0.37kW (0.5HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 2.4A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Size R0 – 70mm Wide x 161mm Deep x 169mm high (239mm high including fastenings and clamp plate). IP20.
Weight: 1.2kg.
Overload – 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start
Speed Control Range – 0-599Hz.
Braking at full load for 90 seconds every 120 seconds to 70 Ohm minimum, 390 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current – 6.1A.
Input Voltage – 200-240V Single Phase at 50/60Hz ±5%.
EMC Filters to IEC/EN 61800-3 2nd Environment C3 (Industrial)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – 47.7W.
Mounting via 35mm DIN rail at rear or
Mounting via 4 x 5mm diameter holes at rear on 50mm x 191mm centres or
Mounting via 3 x 5mm diameter holes at side on 41 x 191mm centres.
Full part number is – ACS355-01E-02A4-2 (3AUA0000058166) and is a direct replacement for the equivalent ACS350.
ABB ACS355 AC Frequency Inverter for 0.75kW (1HP):
ABB ACS355 AC Frequency Inverter for 0.75kW (1HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 4.7A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Size R1 – 70mm Wide x 161mm Deep x 169mm high (239mm high including fastenings and clamp plate). IP20.
Weight: 1.2kg.
Overload – 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start
Speed Control Range – 0-600Hz.
Braking at full load for 45 seconds every 120 seconds to 40 Ohm minimum, 200 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs (bi-polar), 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current – 11.4A, or 8.1A when supplied via 2.8mH choke.
Input Voltage – 200-240V Single Phase at 50/60Hz ±5%.
EMC Filters to IEC/EN 61800-3 2nd Environment C3 (Industrial)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – 72.4W.
Mounting via 35mm DIN rail at rear or
Mounting via 4 x 5mm diameter holes at rear on 50mm x 191mm centres or
Mounting via 3 x 5mm diameter holes at side on 41 x 191mm centres.
Full part number is – ACS355-01E-04A7-2 (3AUA0000058167) and is a direct replacement for the equivalent ACS350.
ABB ACS355 AC Frequency Inverter for 1.1kW (1.5HP):
ABB ACS355 AC Frequency Inverter for 1.1kW (1.5HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 6.7A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Size R1 – 70mm Wide x 161mm Deep x 169mm high (239mm high including fastenings and clamp plate). IP20.
Weight: 1.2kg.
Overload – 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start
Speed Control Range – 0-600Hz.
Braking at full load for 28 seconds every 120 seconds to 40 Ohm minimum, 130 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current – 16.1A.
Input Voltage – 200-240V Single Phase at 50/60Hz ±5%.
EMC Filters to IEC/EN 61800-3 2nd Environment C3 (Industrial)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – 97.4W.
Mounting via 35mm DIN rail at rear or
Mounting via 4 x 5mm diameter holes at rear on 50mm x 191mm centres or
Mounting via 3 x 5mm diameter holes at side on 41 x 191mm centres.
Full part number is – ACS355-01E-06A7-2 (3AUA0000058168) and is a direct replacement for the equivalent ACS350.
ABB ACS355 AC Frequency Inverter for 1.5kW (2HP):
ABB ACS355 AC Frequency Inverter for 1.5kW (2HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 7.5A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Dimensions: Size R2 105mm Wide x 165mm Deep x 169mm high (239mm high including fastenings and clamp plate).
Enclosure Rating: IP20.
Weight: 1.7kg.
Overload: 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start.
Speed Control Range: 0-600Hz.
Braking: Full load for 19 seconds every 120 seconds to 30 Ohm minimum, 100 Ohm Maximum external resistor (not supplied), see the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features: 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current: 16.8A, or 12A when supplied via 1.2mH choke.
Input Voltage: 200V-240V Single Phase at 50/60Hz ±5%.
EMC Filters: IEC/EN 61800-3 2nd Environment C3 (Industrial).
Mounting: Cubicle mount onto symmetrical DIN rail, or via 4 x 5mm diameter holes at rear on 85mm x 191mm centres, or 3 x 5mm diameter holes at side on 41 x 191mm centres. Optional Wall mount top cover and gland box are available from the options linked below.
Ambient: Rated at 40°C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm (drives can be mounted side by side).
Heat Loss: 101W at maximum output:
Part Number: ACS355-01E-07A5-2 (3AUA0000058169) and is a direct replacement for the equivalent ACS350.
ABB ACS355 AC Frequency Inverter for 2.2kW (3HP):
ABB ACS355 AC Frequency Inverter for 2.2kW (3HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 9.8A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Size R2 – 105mm Wide x 165mm Deep x 169mm high (239mm high including fastenings and clamp plate). IP20.
Weight: 1.7kg.
Overload – 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start
Speed Control Range – 0-600Hz.
Braking at full load for 14 seconds every 120 seconds to 30 Ohm minimum, 70 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current – 21A.
Input Voltage – 200-240V Single Phase at 50/60Hz ±5%.
EMC Filters to IEC/EN 61800-3 2nd Environment C3 (Industrial)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – 123.5W.
Mounting via 35mm DIN rail at rear or
Mounting via 4 x 5mm diameter holes at rear on 85mm x 191mm centres or
Mounting via 3 x 5mm diameter holes at side on 41 x 191mm centres.
Full part number is – ACS355-01E-09A8-2 (3AUA0000058170) and is a direct replacement for the equivalent ACS350.
ABB ACS355 AC Frequency Inverter for 3kW (4HP):
ABB ACS355 AC Frequency Inverter for 3kW (4HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 13.3A. Simple to set-up for use with 3 phase 230V input and a three phase 230V standard AC Induction motor or permanent magnet synchronous motor.
No Keypad included.
Size R2 – 105mm Wide x 165mm Deep x 169mm high (239mm high including fastenings and clamp plate). IP20.
Weight: 1.7kg.
Overload – 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start
Speed Control Range – 0-600Hz.
Braking at full load for 16 seconds every 120 seconds to 30 Ohm minimum, 50 Ohm Maximum external resistor (not supplied) – see the Resistor options linked below or use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
‘Safe Torque Off’ function to SIL 3.
Programmable from a PC via ‘DriveWindow’ or using the ABB FlashDrop tool.
Input Current – 21.7A.
Input Voltage – 200-240V Three Phase at 50/60Hz ±5%.
EMC Filters to IEC/EN 61800-3 2nd Environment C3 (Industrial)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – 139.5W.
Mounting via 35mm DIN rail at rear or
Mounting via 4 x 5mm diameter holes at rear on 85mm x 191mm centres or
Mounting via 3 x 5mm diameter holes at side on 41 x 191mm centres.
Full part number is – ACS355-03E-13A3-2 (3AUA0000058177) and is a direct replacement for the equivalent ACS350.
