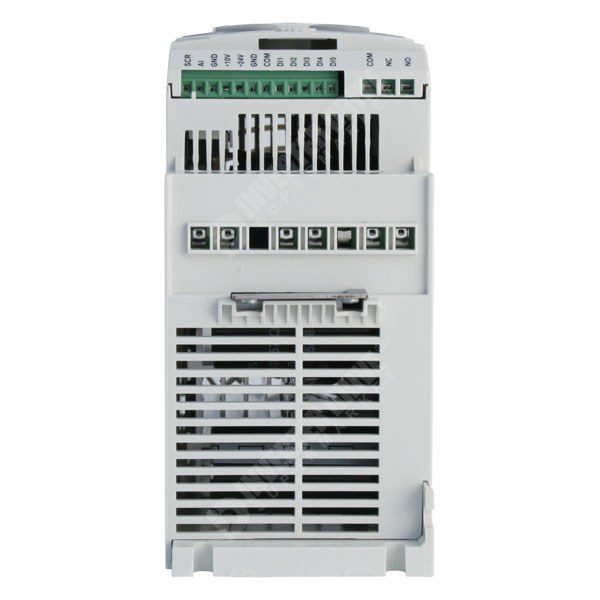

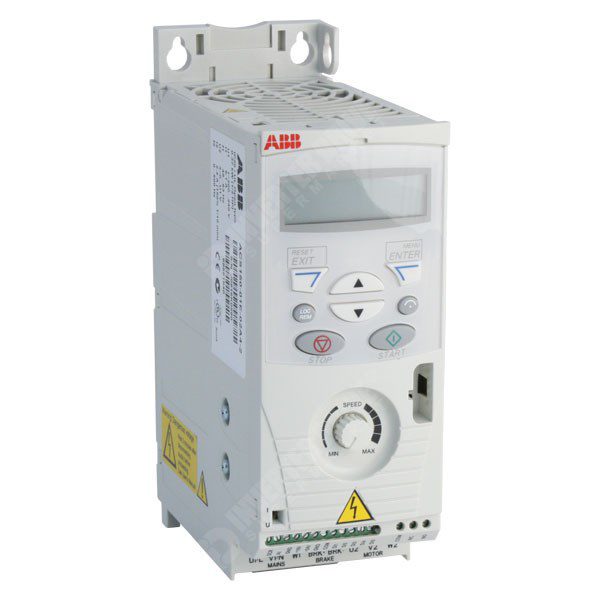

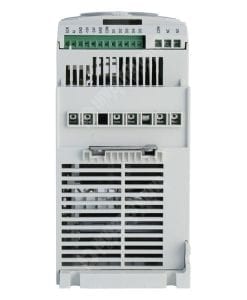

ABB ACS150 230V AC Inverter Drive
ABB Drives ACS150 AC Variable Frequency Drive Controller for 0.37kW:
ABB Drives ACS 150 AC Variable Frequency Drive Controller for 0.37kW (0.5HP) 230V 3 Ph motor in VxF control to 2.4A. Converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V output to control the speed of a standard AC Induction motor.
Dimensions: R0 Size 70mm Wide x 144mm Deep x 201mm high (plus cable clamp plate at 38mm).
Enclosure Rating: IP20.
Overload: 150% x 60seconds.
Speed Control Range: 0/500Hz.
Braking: To 70 Ohm Minimum to 390 Ohm Maximum external resistor (not supplied). See the Resistor options linked below, or use the ‘Brake Resistor Calulator’ on this page.

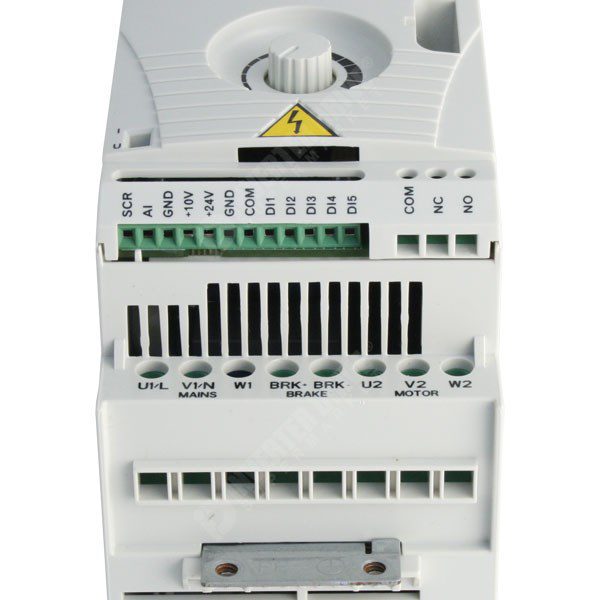

Features: Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters: EN61800-3 to the 2nd Environment C3 (Industrial). See linked products below for external 1st Environment (Domestic) EMC Filter.
Can be installed with supplies protected by RCD Type A.
Input Current: 6.1A, or 4.5A when supplied via 8mH choke.
Input Voltage: 200/240V single phase +-10% at 50/60Hz.
Mounting: Cubicle mount onto symmetrical DIN rail or use the screw fixings for side or rear mounting. Wall mount in a clean environment when fitted with the optional top cover and gland box linked below.
Ambient: Rated at 40C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm.
Heat Loss: 37W at max output.
Part number: ACS150-01E-02A4-2 (68581940)
EAN: 6410038079307
Replaces the ACS100 that is no longer manufactured. (ACS101-K18-1, ACS101-K25-1, ACSK37-K37-1, ACS101-K75-1).
ABB Drives ACS150 AC Variable Frequency Inverter Drive Controller for 0.75kW:
ABB Drives ACS 150 AC Variable Frequency Inverter Drive Controller for 0.75kW (1.0HP) 230V 3 Ph motor in VxF control to 4.7A. Converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V output to control the speed of a standard AC Induction motor.
Dimensions: R1 Size 70mm Wide x 144mm Deep x 201mm high (plus cable clamp plate at 38mm).
Enclosure Rating: IP20.
Overload: 150% x 60seconds.
Speed Control Range: 0/500Hz.
Braking: To 40 Ohm Minimum, 200 Ohm Maximum external resistor (not supplied). See the Resistor options linked below or use the ‘Brake Resistor Calculator’ on this page.
Features: Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Can be programmed from a pc via ‘Flashdrop’.
EMC Filters: EN61800-3 to the 2nd Environment C3 (Industrial). See linked products below for external 1st Environment (Domestic) EMC Filter.
Can be installed with supplies protected by RCD Type A.
Input Current: 11.4A, or 8.1A when supplied via 2.8mH choke.
Input Voltage: 200/240V single phase +-10% at 50/60Hz.
Mounting: Cubicle mount onto symmetrical DIN rail or use the screw fixings for side or rear mounting. Wall mount in a clean environment when fitted with the optional top cover and gland box linked below.
Ambient: Rated at 40C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm.
Heat Loss at max output: 62W.
Part Number: ACS150-01E-04A7-2 (68581966).
Replaces the ACS100, that is no longer manufactured. (ACS101-1K1-1, ACS101-1K6-1)
ABB Drives ACS150 AC Frequency Inverter for 1.1kW:
ABB Drives ACS 150 AC Frequency Inverter for 1.1kW (1.5HP) 230V 3 Ph motor in VxF control to 6.7A. Converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V output to control the speed of a standard AC Induction motor.
R1 Size – 70mm Wide x 144mm Deep x 201mm high (plus cable clamp plate at 38mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 40 Ohm Minimum, 130 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Brake Resistor Calculator’ on this page.
Features – Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial). See linked products below for external 1st Environment (Domestic) EMC Filter.
Can be used with supplies protected by RCD Type A.
Input Current – 16.1A, or 11A when supplied via 1.2mH choke.
Input Voltage – 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm.
Heat Loss at max output – 87W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS150-01E-06A7-2 (68581974)
Replaces the ACS100 that is no longer manufactured. ACS101-2K1-1.
Use this drive to slow down a 2.2kW x 400V Motor. Setting its ‘Base Frequency’ to 29Hz means it will provide full torque output up to the 29Hz speed of a 400V motor.
ABB Drives ACS150 AC Frequency Inverter Variable Speed Drive Controller for 1.5kW:
ABB Drives ACS 150 AC Frequency Inverter Variable Speed Drive Controller for 1.5kW (2HP) 230V 3 Ph motor in VxF control to 7.5A. Converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V output to control the speed of a standard AC Induction motor.
Dimensions: R2 Size 105mm Wide x 144mm Deep x 169mm high (plus cable clamp plate at 70mm).
Enclosure Rating: IP20.
Overload: 150% x 60seconds.
Speed Control Range: 0/500Hz.
Braking: To 30 Ohm Minimum, 100 Ohm Maximum external resistor (not supplied). See the Resistor options linked below or use the ‘Brake Resistor Calculator’ on this page.
Features: Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters: EN61800-3 to the 2nd Environment C3 (Industrial). See linked products below for external 1st Environment (Domestic) EMC Filter.
Can be installed with supplies protected by RCD Type A.
Input Current: 16.8A, or 12A when supplied via 1.2mH choke.
Input Voltage: 200/240V single phase +-10% at 50/60Hz.
Mounting: Cubicle mount onto symmetrical DIN rail or use the screw fixings for side or rear mounting. Optional Wall mount top cover and gland box are available from the options linked below.
Ambient: Rated at 40C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm.
Heat Loss: 90W at max output.
Part number: ACS150-01E-07A5-2 (68581982)
Replaces the ACS100 that is no longer manufactured. ACS101-2K7-1.
ABB Drives ACS150 AC Frequency Inverter Variable Speed Drive Controller (VFD) for a 2.2kW:
ABB Drives ACS 150 AC Frequency Inverter Variable Speed Drive Controller (VFD) for a 2.2kW (3HP) 230V 3 Ph motor in VxF control to 9.8A. Converts fixed frequency Single Phase 230V input to variable frequency three phase 230V output to control the speed of a standard AC Induction motor.
Dimensions: R2 Size 105mm Wide x 144mm Deep x 169mm high (plus cable clamp plate at 70mm).
Enclosure Rating: IP20 case.
Overload: 150% x 60seconds.
Speed Control Range: 0/400Hz without de-rating or 0/500Hz de-rated to 80%.
Switching Frequency: 4kHz (default) or selectable to 8kHz, 12kHz or 16kHz at 20%, 35% and 50% de-rating.
Braking: To 30 Ohm Minimum, 70 Ohm Maximum external resistor (not supplied). See the Resistor options linked below or use the ‘Brake Resistor Calculator’ on this page.
Features: Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters: EN61800-3 to the 2nd Environment C3 (Industrial). See linked products below for external 1st Environment (Domestic) EMC Filter.
Can be installed with supplies protected by RCD Type A.
Input Current: 21A, or 15A when supplied via 1mH choke.
Input Voltage: 200V/240V single phase +-10% at 50/60Hz.
Mounting: Cubicle mount onto symmetrical DIN rail or use the screw fixings for side or rear mounting. Wall mount when the top cover and gland box option is added, see the linked products below.
Ambient: Rated at 40C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm.
Heat Loss at max output: 113W.
Part number: ACS150-01E-09A8-2 (68581991)
Replaces the ACS100 that is no longer manufactured. ACS101-4K1-1.
ABB Drives ACS 150 AC Frequency Inverter for 2.2kW:
ABB Drives ACS 150 AC Frequency Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF control to 9.8A. Converts fixed frequency Three Phase 230V inputto variable frequency Three Phase 230V output to control the speed of a standard AC Induction motor.
R2 Size – 105mm Wide x 144mm Deep x 169mm high (plus cable clamp plate at 70mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 30 Ohm Minimum, 70 Ohm Maximum external resistor (not supplied) – See the Resistor options linked below or use the ‘Brake Resistor Calculator’ on this page.
Features – Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment C3 (Industrial).
Input Current – 14.3A, or 11A when supplied via 1.5mH choke.
Input Voltage – 200/208/220/230/240V three phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm.
Heat Loss at max output – 100W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS150-03E-09A8-2 (68582059)
Replaces the ACS100 that is no longer manufactured.
